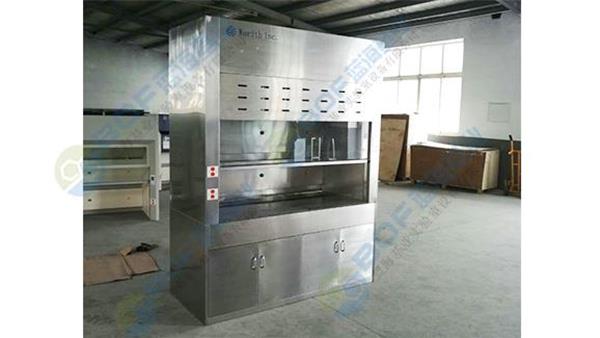

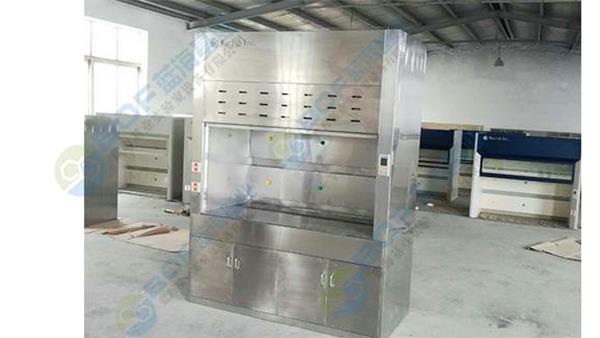

Stainless steel Fume hood

Stainless steel Fume hood refers to the Fume hood made of stainless steel, which has strong corrosion resistance and high surface smoothness. Stainless steel finishes include smooth surface, silk panel, concave convex panel, fog panel, semi bead shaped panel, and curved panel. Healthy and environmentally friendly, reusable, meeting the sustainable development pursued by modern laboratories.

Product specifications:

Length, width, and height

1200mm 800mm 2350mm

1500mm 800mm 2350mm

1800mm 800mm 2350mm

Material Description:

● Shell Description: The shell is made of 1.0mm # 304 stainless steel, which is cut, positioned, punched, bent, and welded in a CNC machining center, forming a beautiful appearance.

● Inner shell description: Made of 1.0mm # 304 stainless steel, equipped with detachable maintenance holes for easy maintenance of circuits, water and gas circuits.

● Description of fluorescent lamp: the fluorescent lamp is hidden on the panel and does not contact with the air flow in the stainless steel Fume hood, so it is easy to replace. Using one 30W fluorescent lamp and equipped with 5mm tempered glass.

Handle Description: Stainless steel matte handle.

Instructions for the deflector: Made of 1.0mm # 304 stainless steel. Power description: Use a laboratory dedicated power socket.

Window description: The aluminum profile is matched with a plastic profile frame, and the window is made of three 5mm safety glass pieces that can move left and right. It also adopts a segmented balance device that can move up and down freely and be adjusted. The sliding door glass handle and window glass frame are made of 1.0mm # 304 stainless steel.

Instructions for adjusting the feet: using diameter φ 10mm injection molded adjustable feet, shockproof, moisture-proof, and corrosion-resistant. The cabinet height can be adjusted according to the indoor floor, with a maximum adjustment of 0-30mm.

Description of gas collection hood: Made of PP material

Distribution box description: It meets the requirements for 220V and 380V power supply, and is equipped with leakage and motor protection devices.

Control switch description: 12V touch switch, centralized control of the entire circuit system

Three guide plates are made of 1.0mm # 304 stainless steel, allowing harmful gases from different heights of the outer trunk to be discharged from different sections. The Fume hood exhausts the air in the Fume hood at the speed of 0.5m/s wind speed on the operating surface to ensure that there is no residual gas. High ventilation efficiency, exhaust air volume of about 1600m3/h, and low noise.

The lower cabinet body (general bottom cabinet) door panel is made of 10mm # 304 stainless steel (double star) without constant connection and can be disassembled with snow reduction heat. It is cut, positioned, and punched in front of the CNC machining center, bent and fixed before forming
